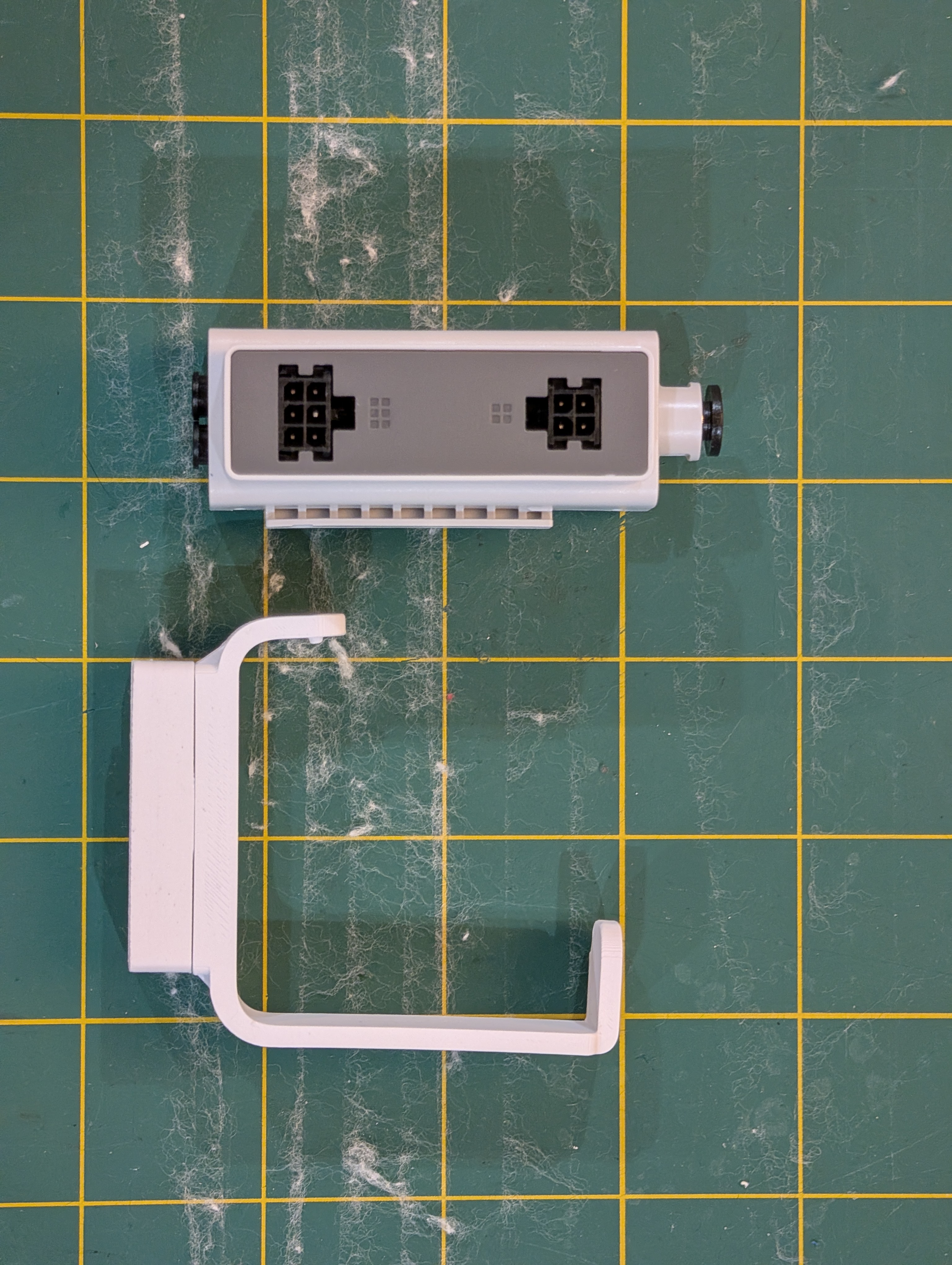

White plastic housing with connectors, 3d printed bracket
2026-02-15 17.43.27.jpg

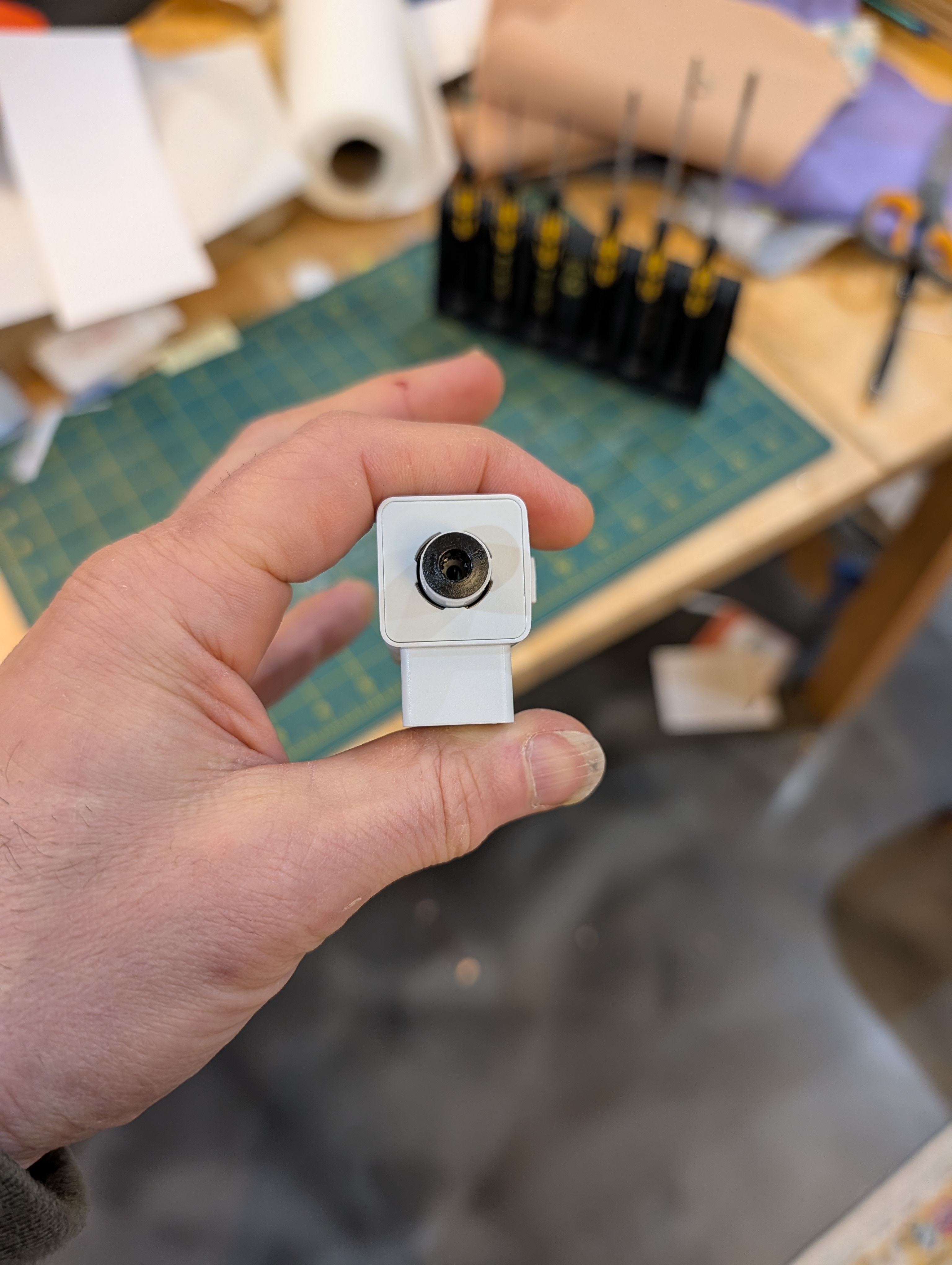

Output bowden tube connector
(this on caused me problems becuase the filiment would freqently get stuck tring to feed here))
(this on caused me problems becuase the filiment would freqently get stuck tring to feed here))
2026-02-15 17.44.18.jpg
Buffer mechanism with spring and metal tube/barrel
2026-02-15 17.45.48.jpg

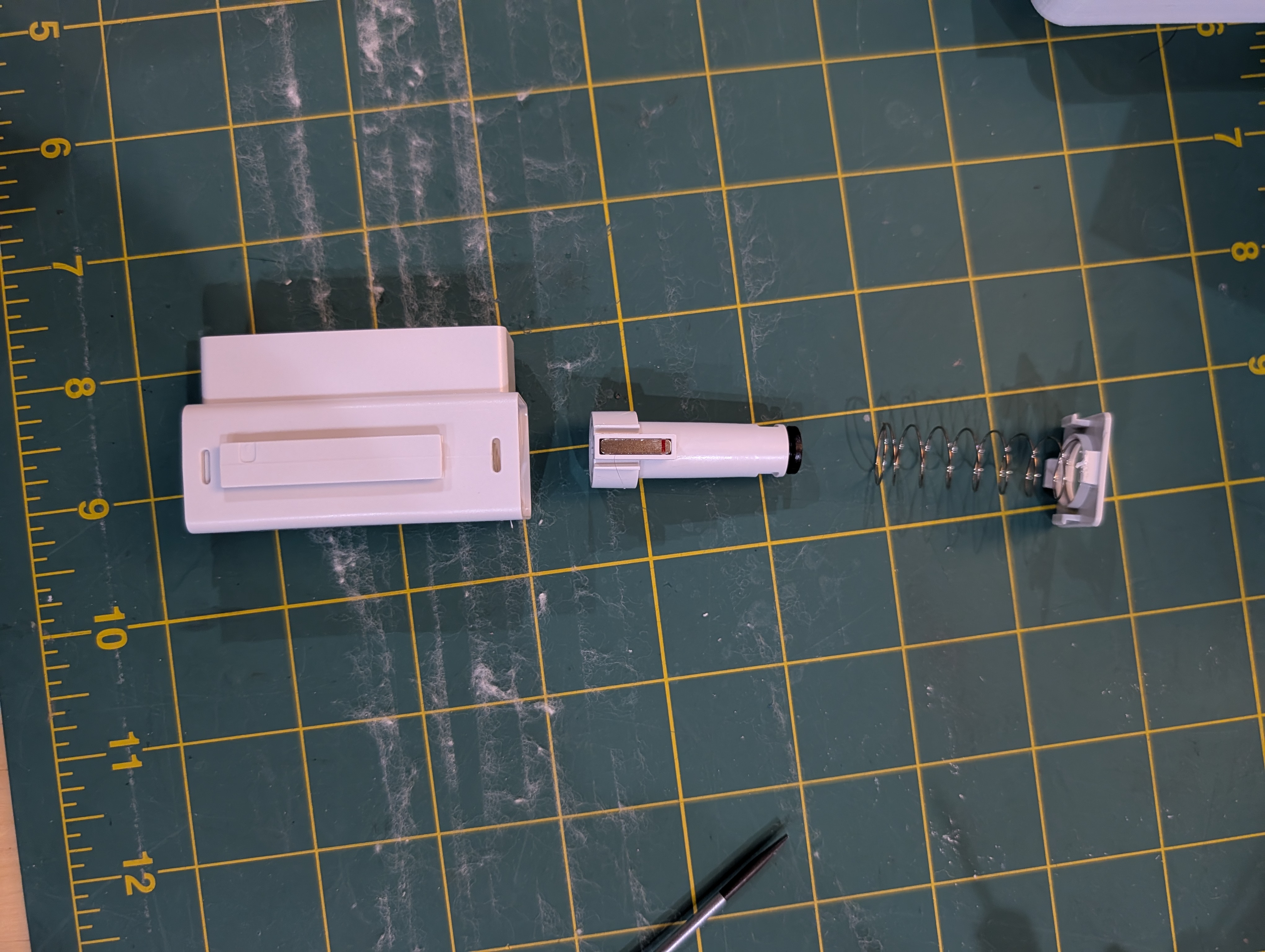

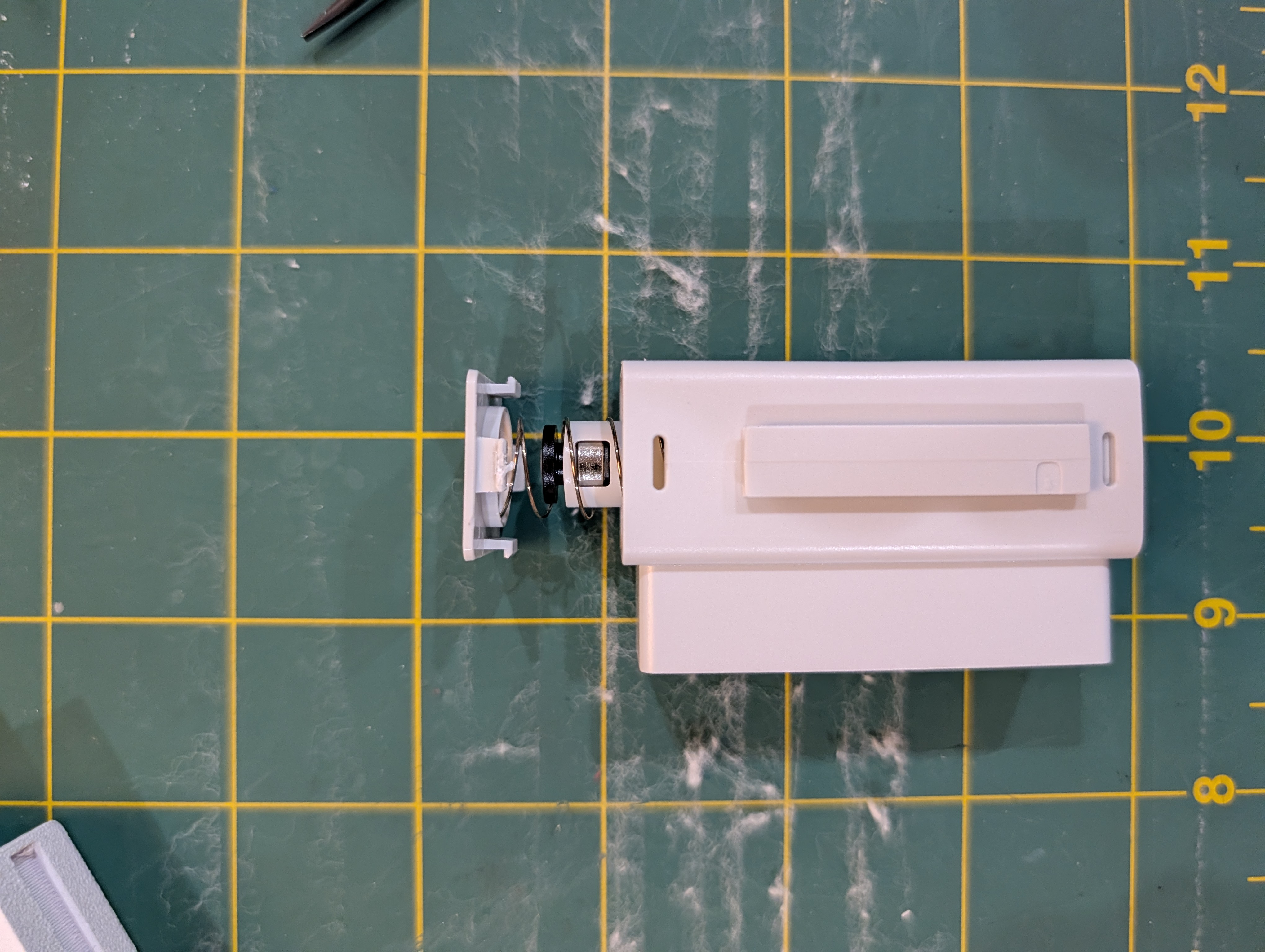

Disassembled buffer mechanism showing spring and metal tube/barrel
2026-02-15 17.46.12.jpg
Feeder that leads the filiment to the output connector
2026-02-15 17.46.33.jpg
Input bowden conectors
2026-02-15 17.48.54.jpg

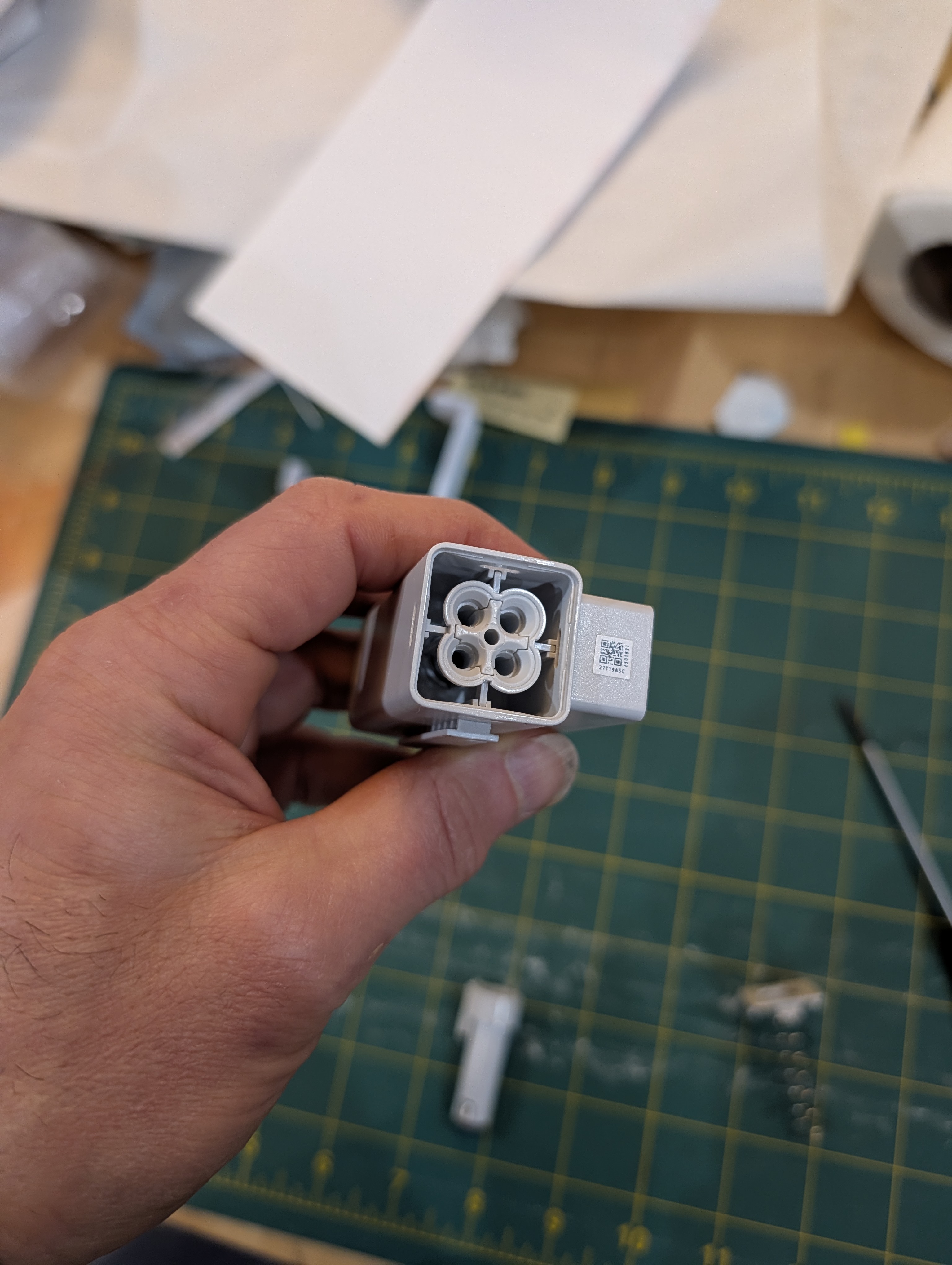

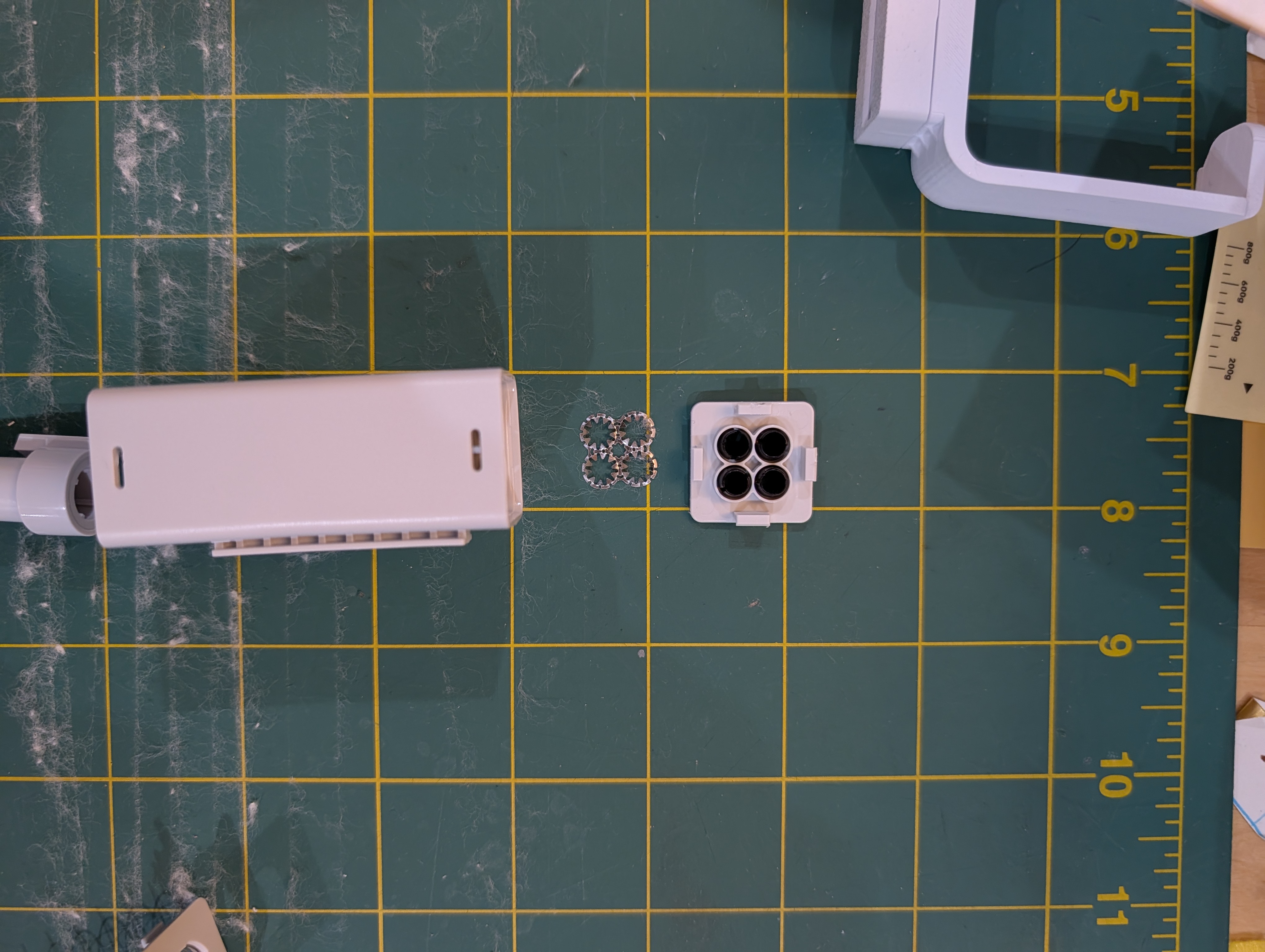

4-port connector end piece with QR code label
2026-02-15 17.49.03.jpg

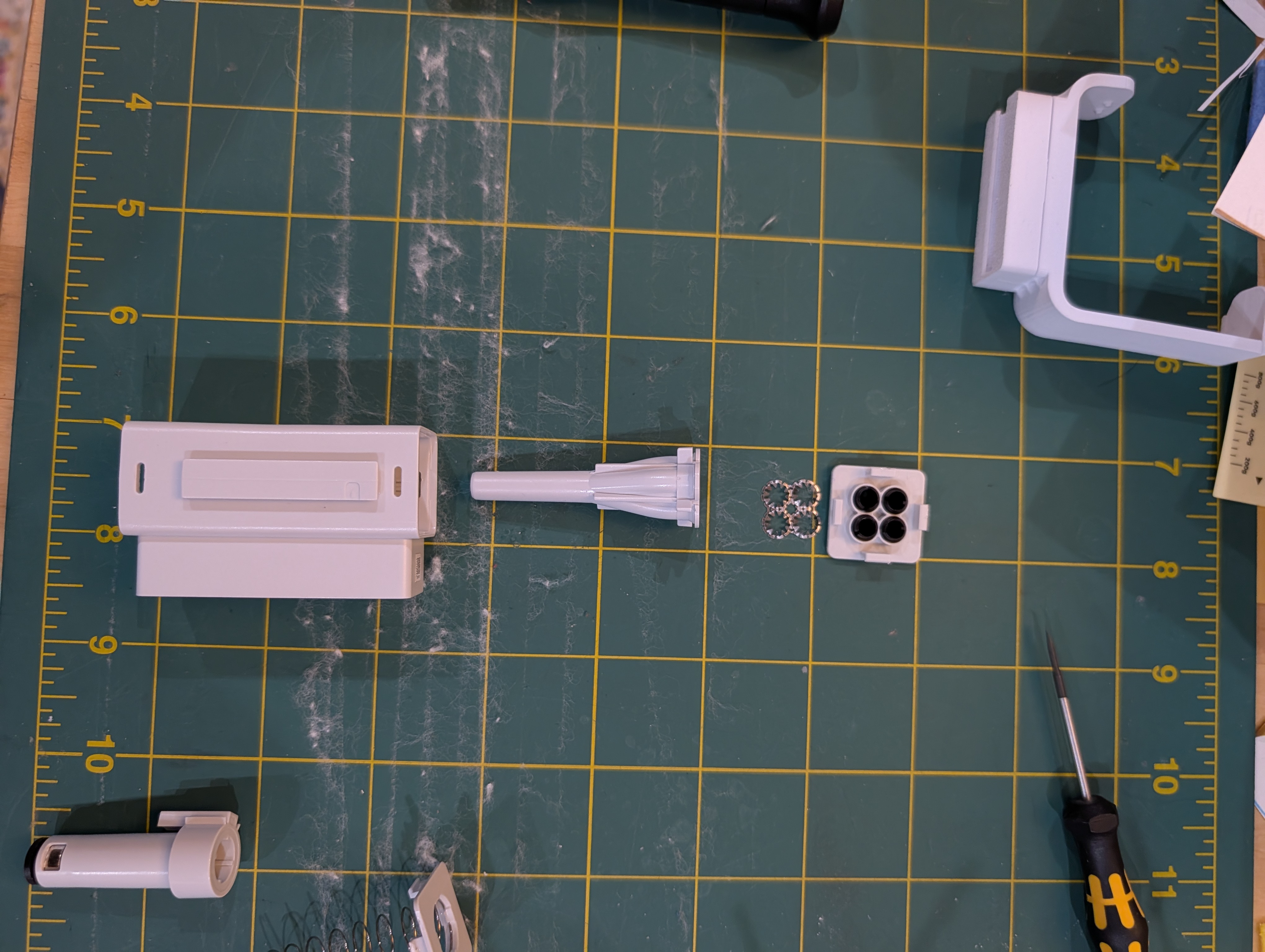

Full teardown: all parts laid out on cutting mat with screwdriver
2026-02-15 17.49.31.jpg

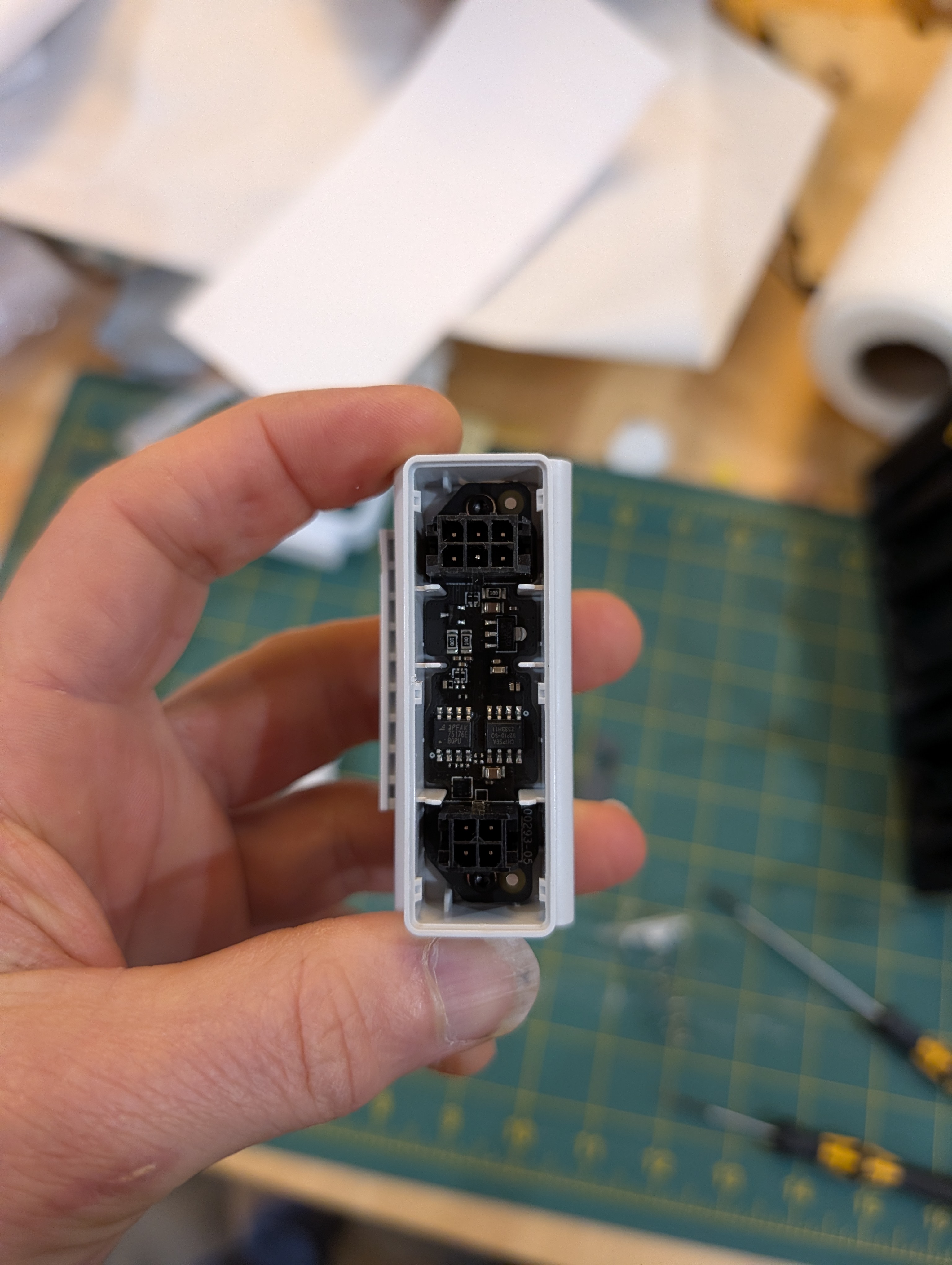

PCB with connectors and SMD components visible inside white housing
2026-02-15 17.51.27.jpg

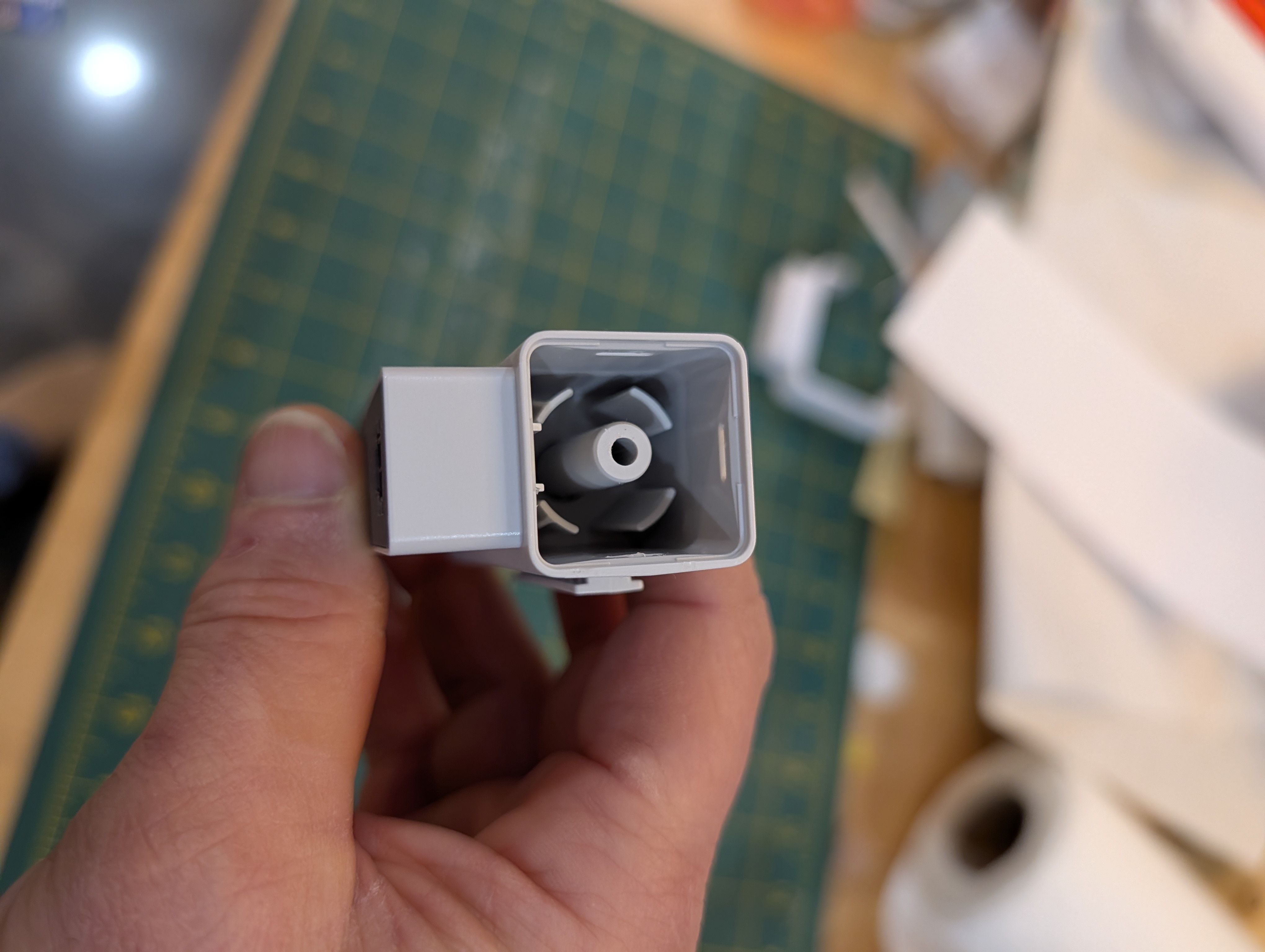

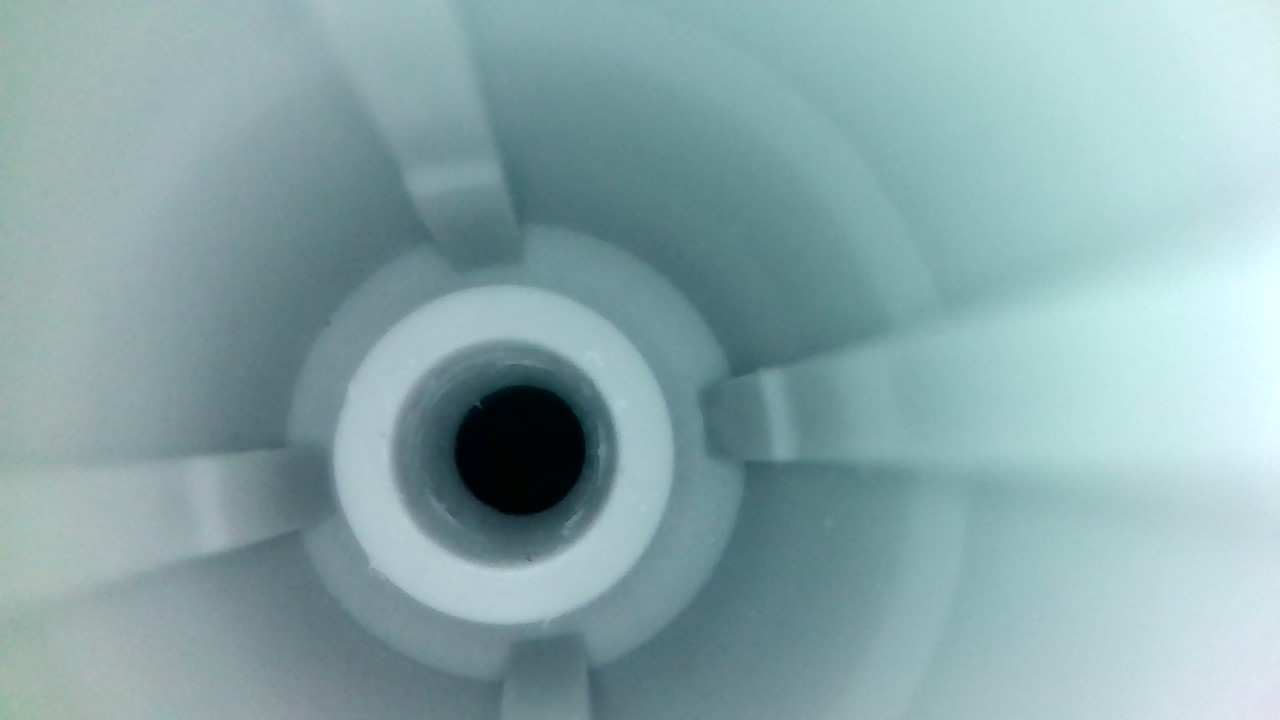

View looking down through barrel interior, showing support ribs

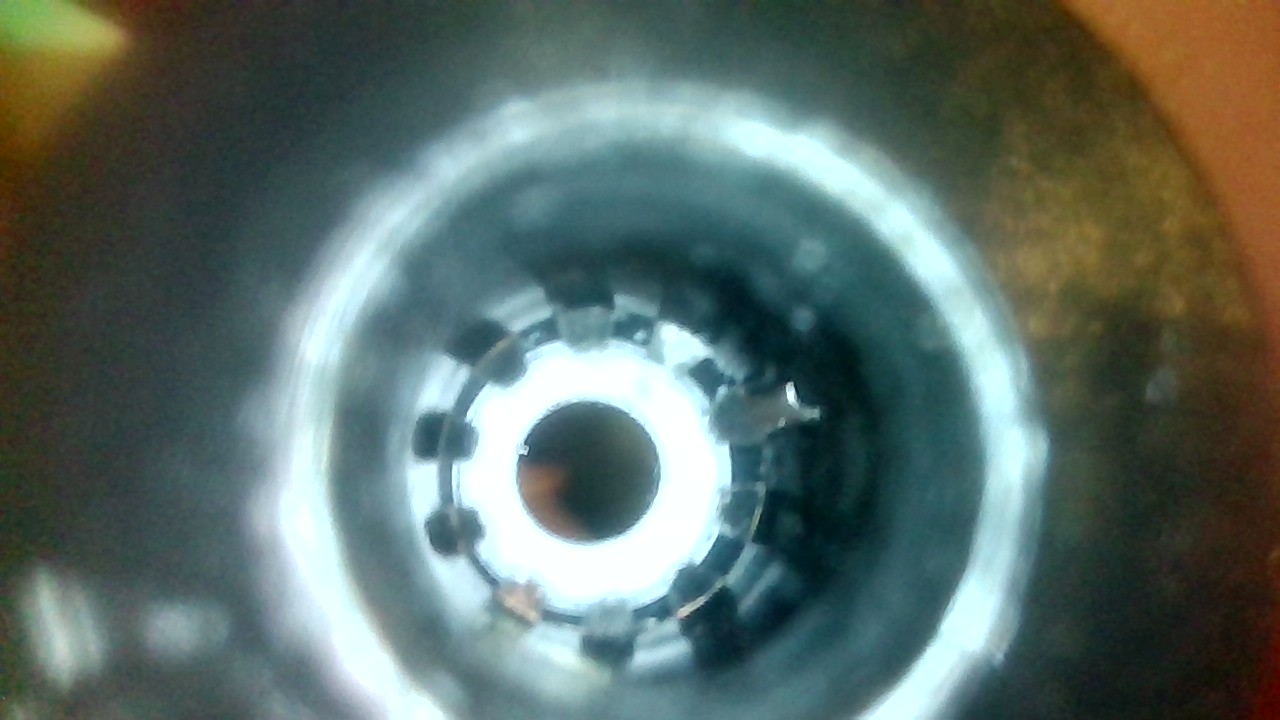

View down through metal tube/barrel showing internal ring detail

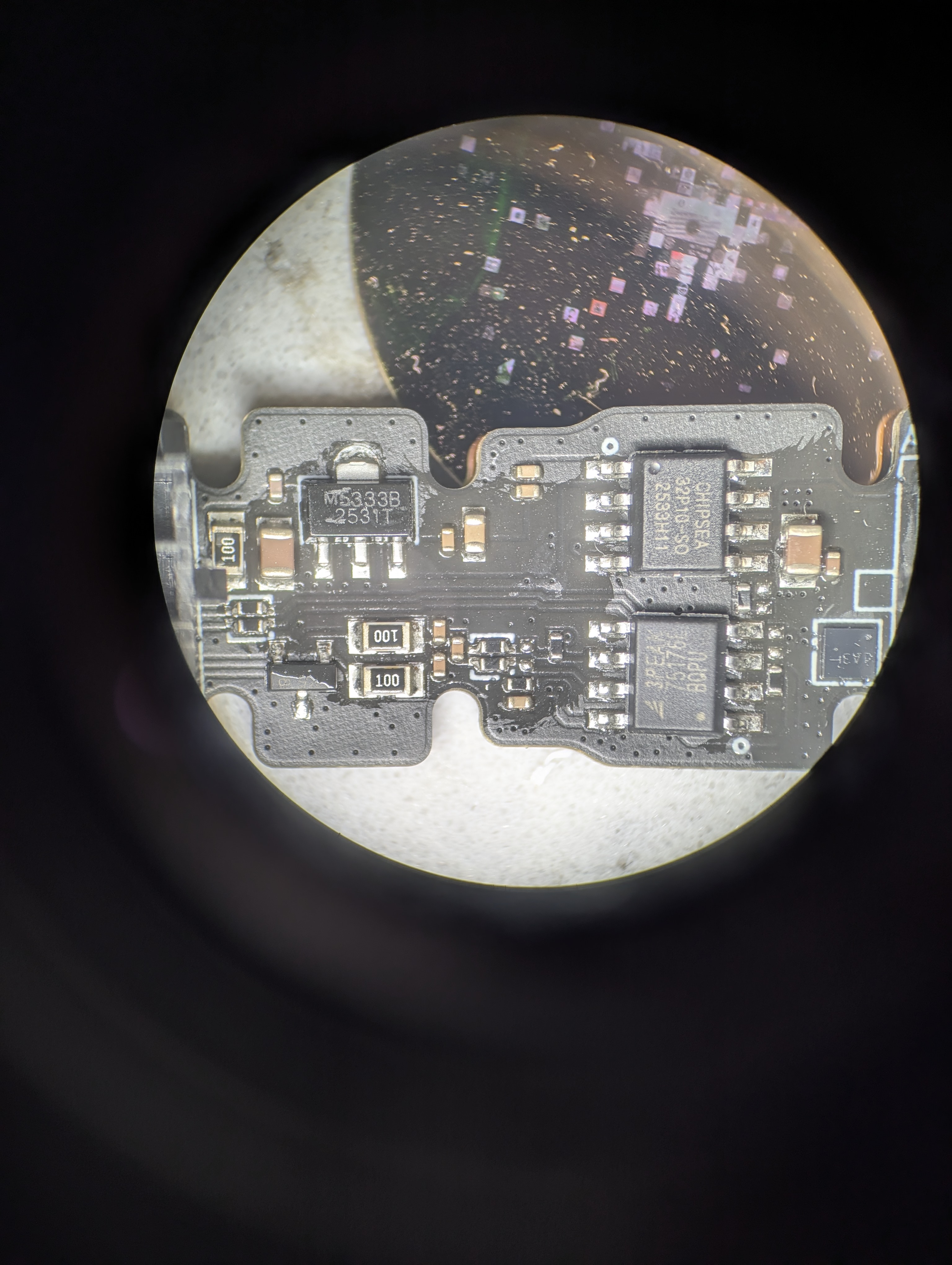

Microscope view of PCB — Chipsea and MS333B ICs, SMD resistors and capacitors
2026-02-15 18.58.57.jpg

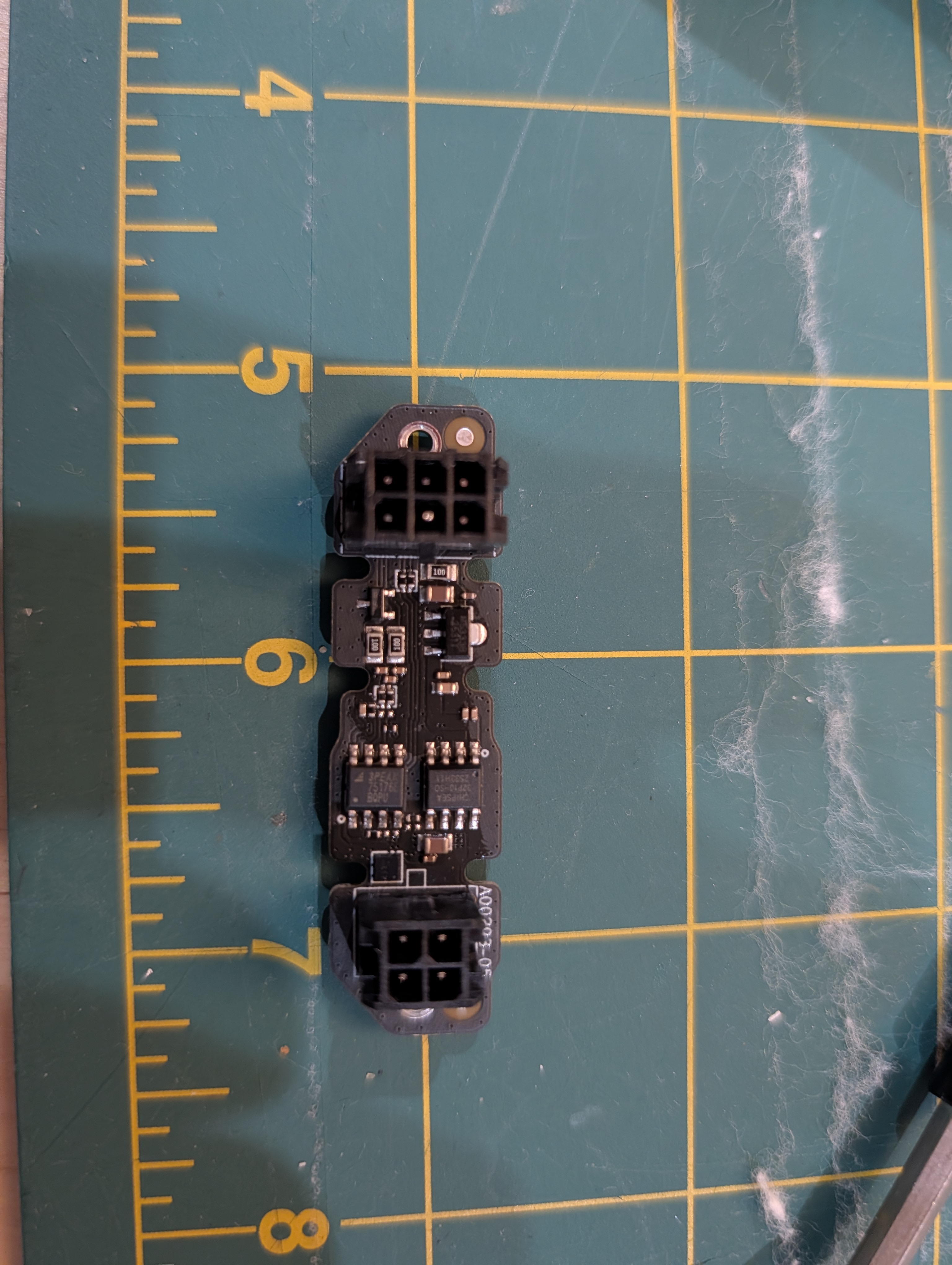

PCB front side on cutting mat — connectors and components populated
2026-02-15 18.59.28.jpg

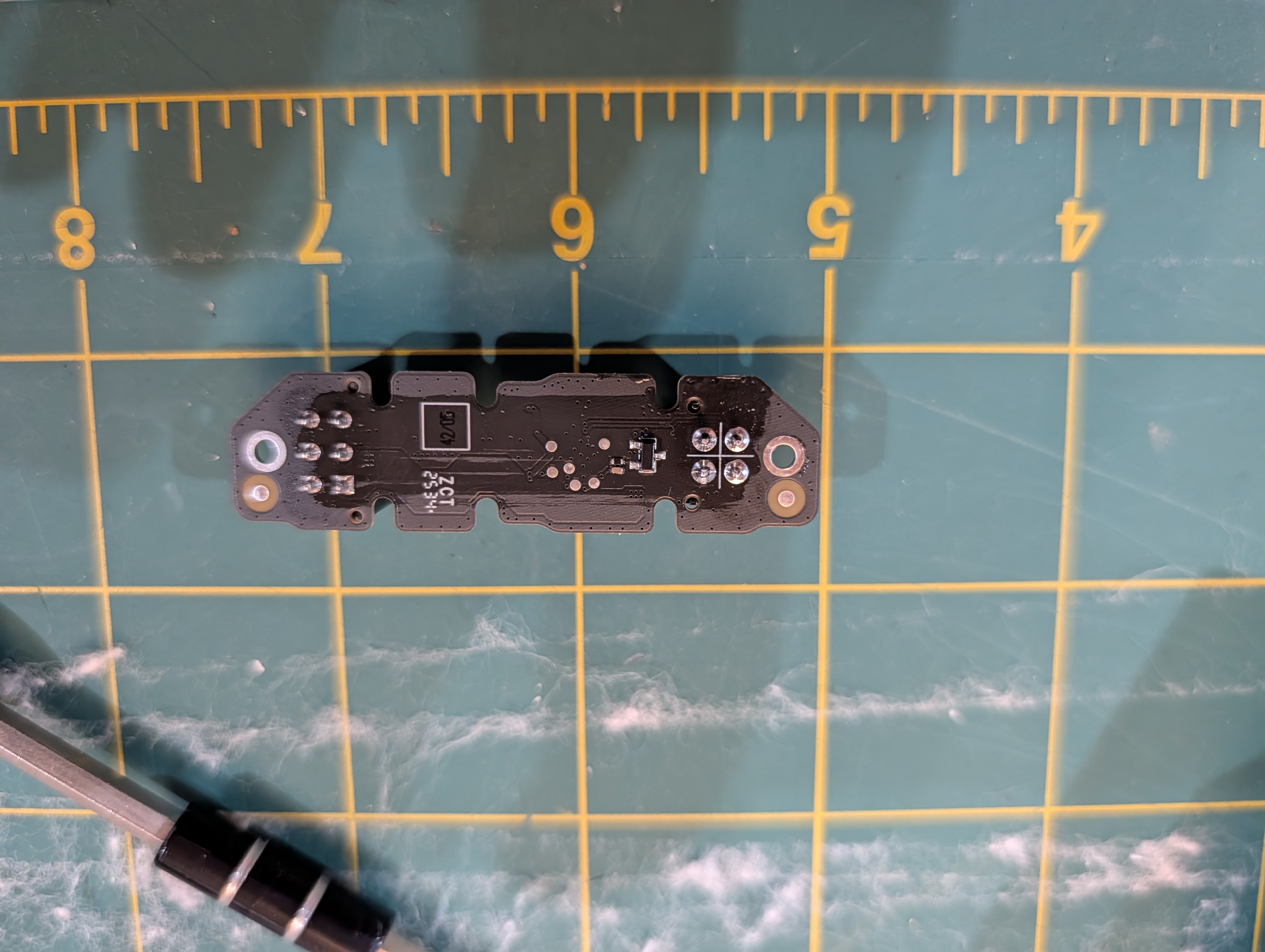

PCB back side on cutting mat
2026-02-15 18.59.37.jpg
